Modular Mobile Capture
ATLAS
An adjustable, rolling multi-camera stand for scanning and high-volume capture. Roll it in, set up in two minutes, reconfigure between full-body, head and group capture - then pack it flat into a case and take it anywhere.
Product overview
A stand that keeps up with the shoot
The Modular Mobile Stand is an adaptable, adjustable multi-camera platform built for the way scanning studios actually work. A rolling base with integrated AC power and quick-connector mounts gets you from travel case to capture fast.
We don't call it mobile just because it rolls on wheels - we call it mobile because every stand breaks down and packs flat for travel. A studio project becomes an anywhere project.
Freedom of movement
Reconfigure in seconds, tool-free
To change camera position, loosen the handles and pull the pin, rotate the arm up or down, release and it locks into place. No tools necessary.
Our patent-pending arm system indexes every 15° across a smooth 0-180° range, so moving from head capture to full-body to group capture takes seconds, repeatably.
Initial assembly and setup only needs a single tool.
Anatomy
Three core parts, each with adjustable arms
Base
Wide-stance wheelbase with four locking casters, a rack-mount pattern and an integrated AC PDU. V-mount battery power available for untethered shoots.
Lower core
The lower adjustable-arm section - carries cameras and lighting to get cameras under your subjects with ease.
Upper core
The upper adjustable-arm section raises overhead for full-body and collapses to clear a standard door.
Fully loaded
Get up and running quickly with WOLF

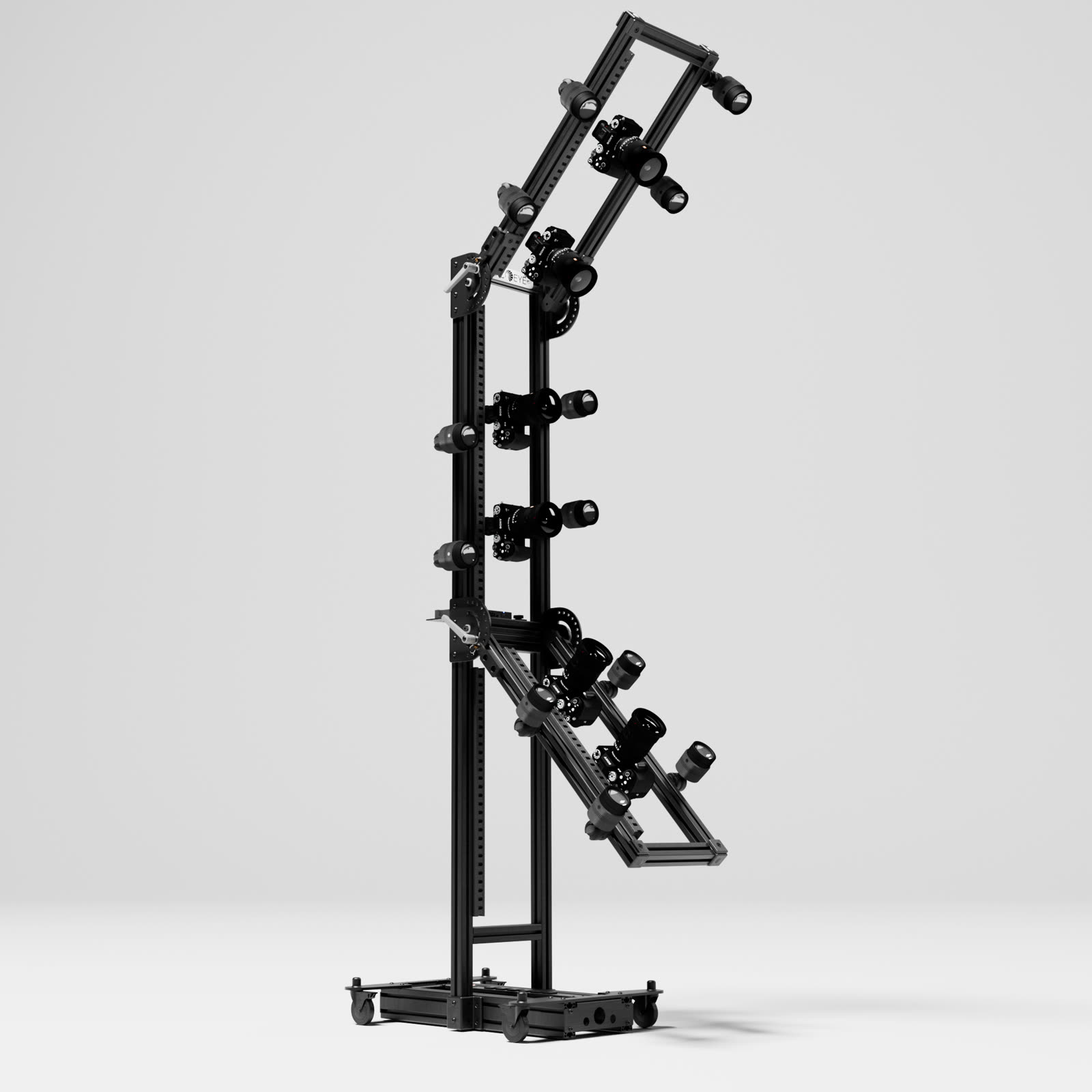

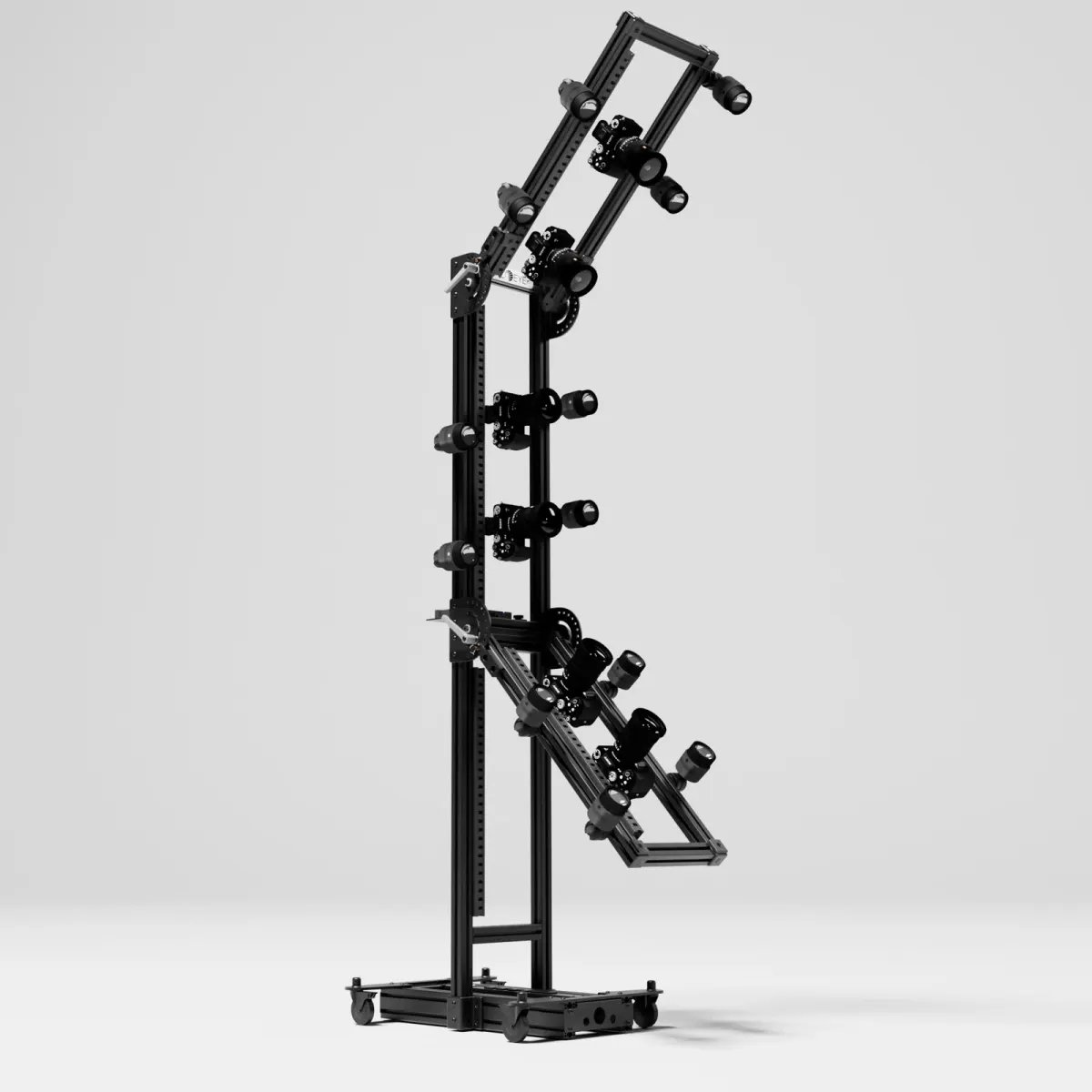

One WOLF drives six cameras, so a single stand gets you a complete six-camera setup, plus optional WOLF LED spotlights.
When you're ready to scale, daisy-chain the next stand and build larger rigs for more complex capture.
Truly mobile

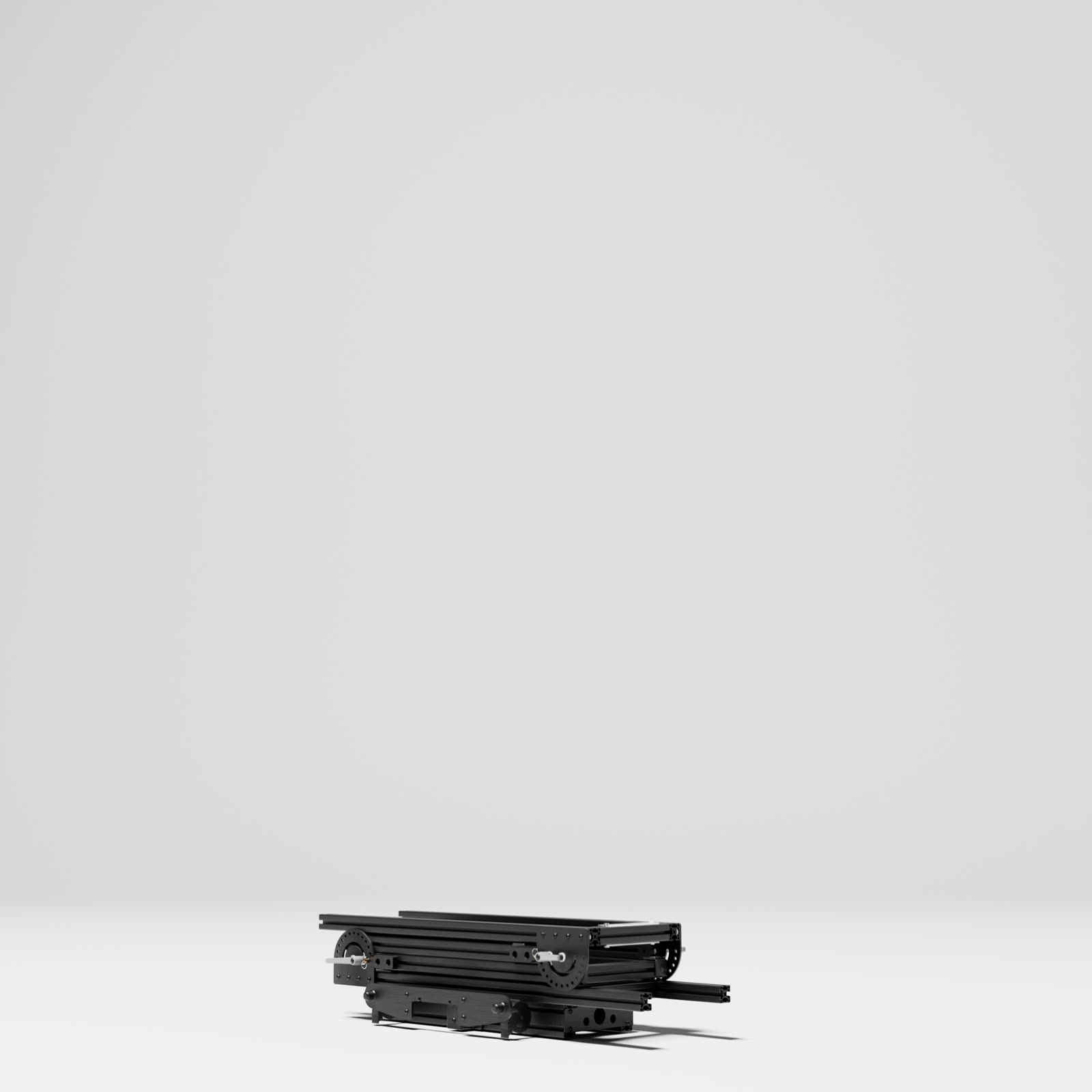

Packs flat. Ships anywhere.

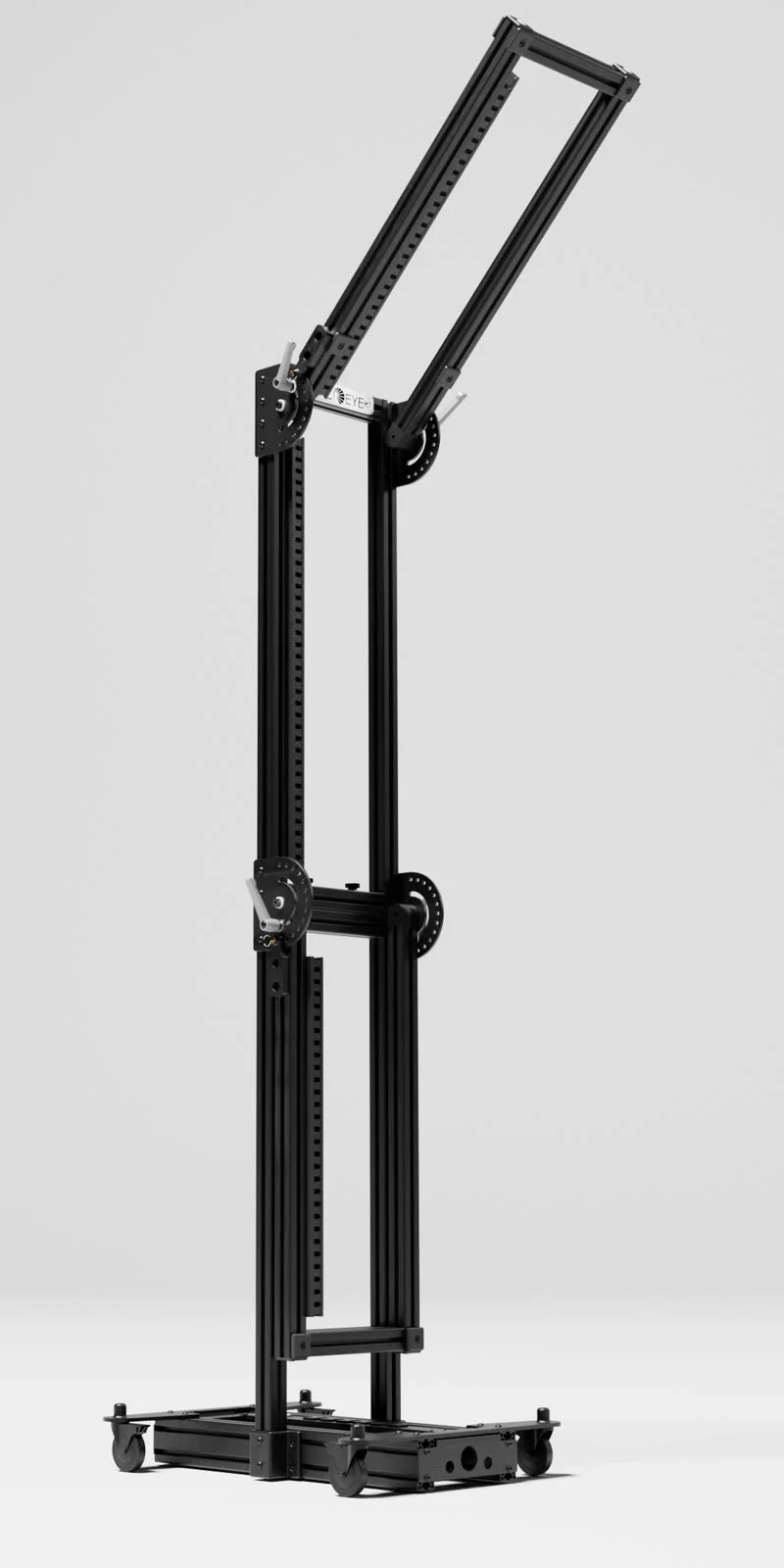

When it's time to move, loosen the upper arm, pull the pin, and bring it down - the stand rolls through any standard door. For travel, each stand breaks down and packs flat into hard cases: ship on ground freight, or check the stands as luggage on commercial flights.
Features
Engineered for real studios
Tool-less indexed arms
15° steps across 0-180°, plus free-angle, for precise and repeatable positioning.

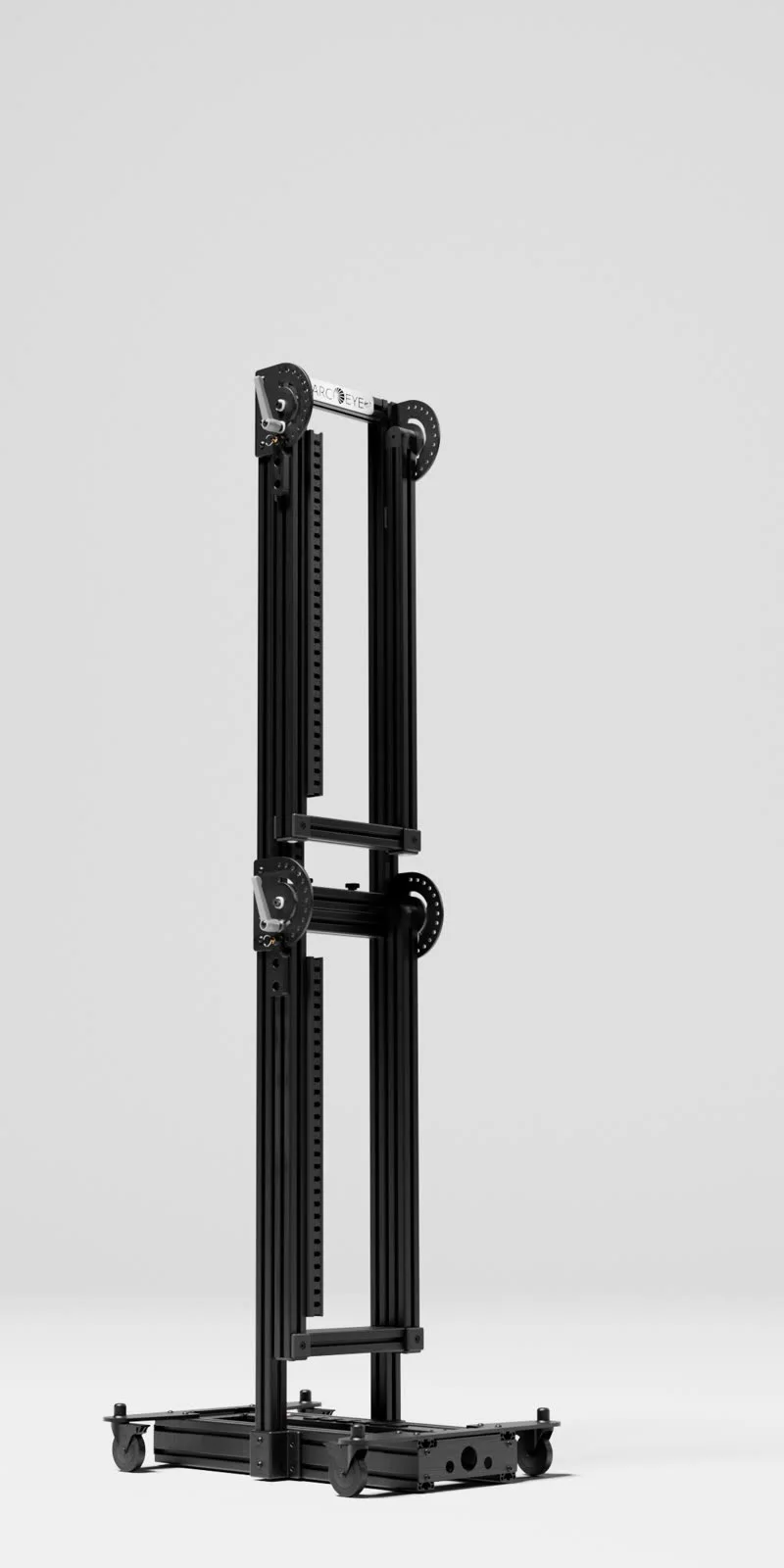

Rolls through doorways
Arms collapse fully; a wide-stance base on four locking casters clears standard doorways.

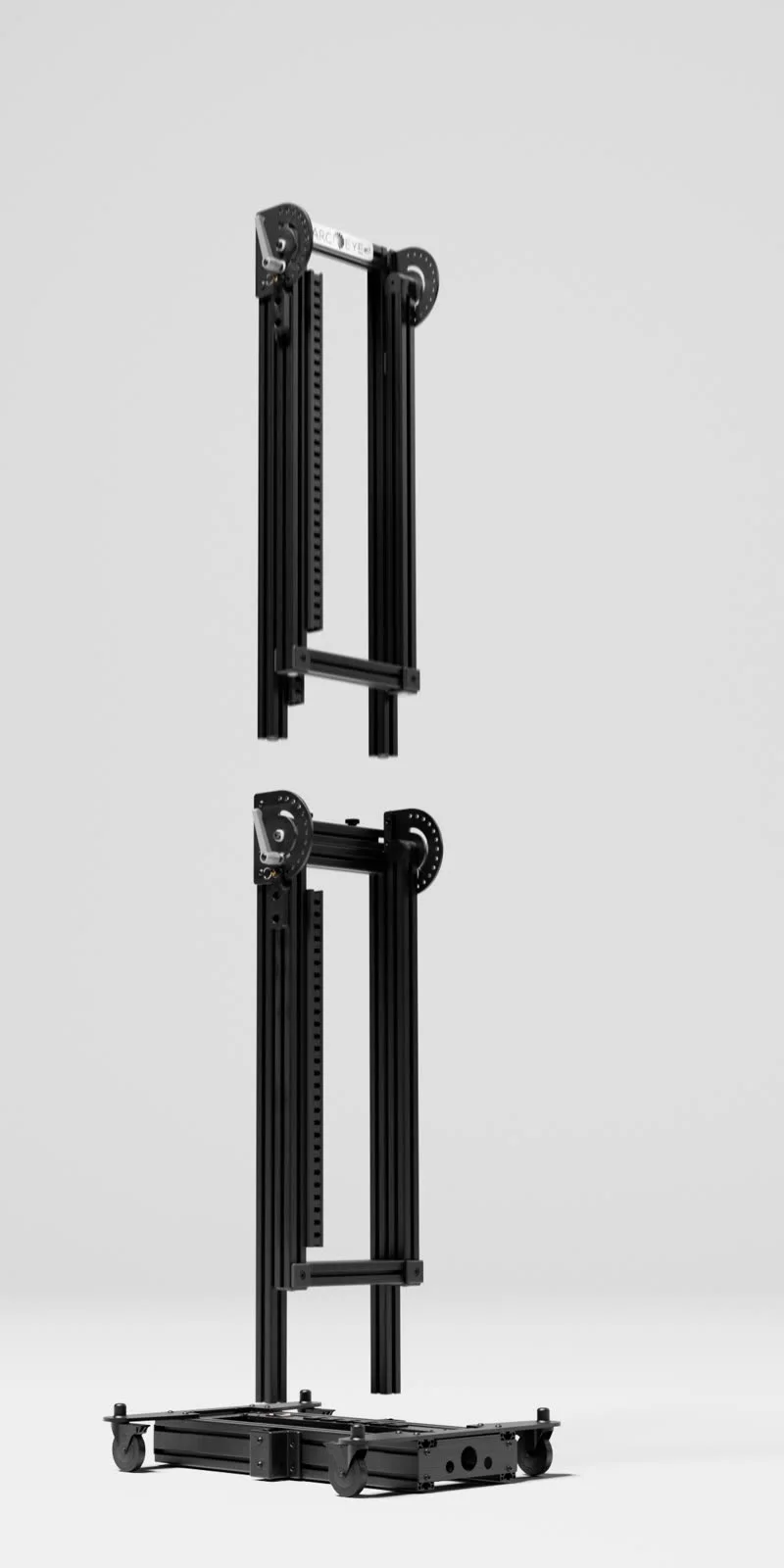

Breaks down to travel

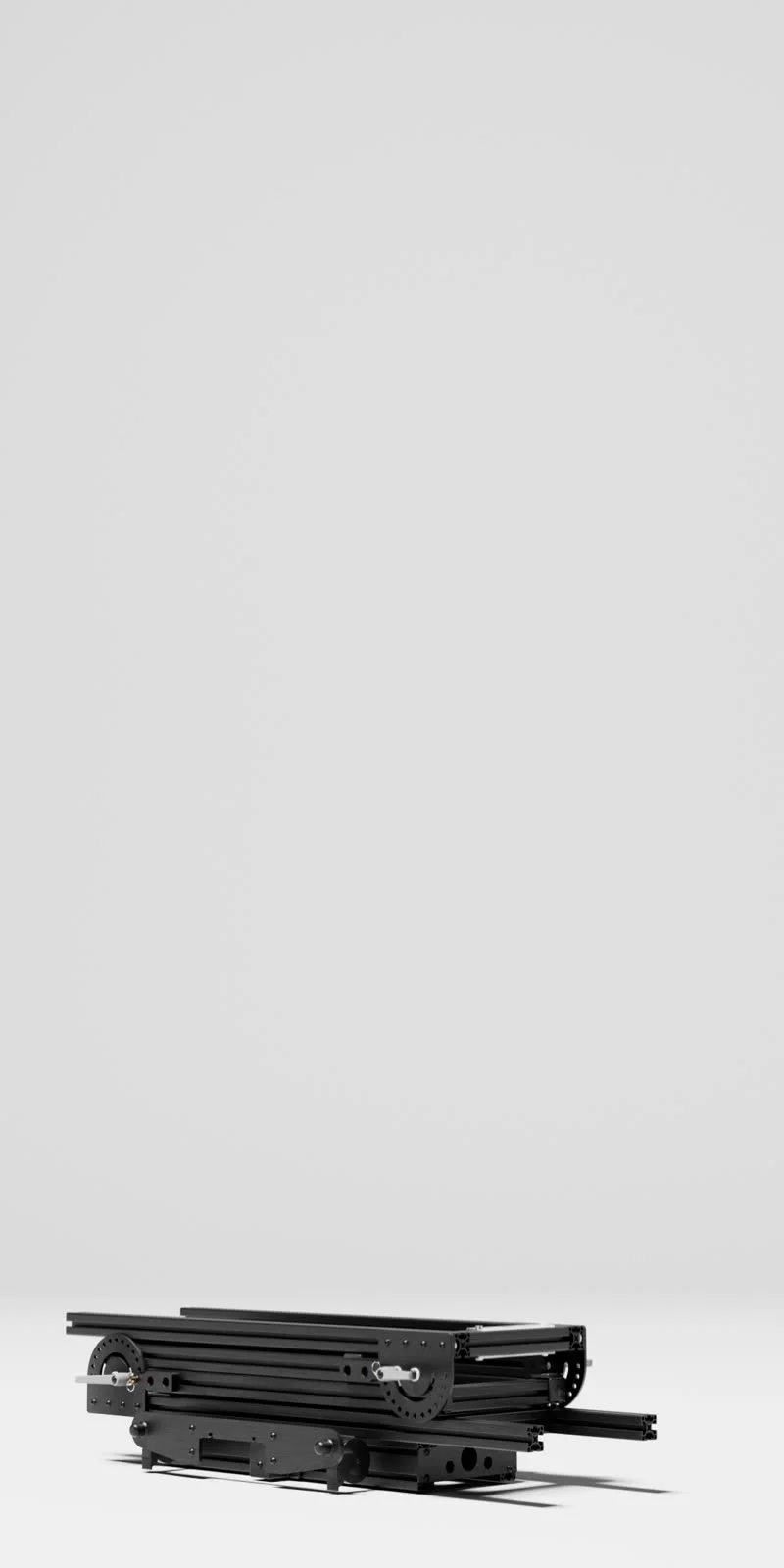

Packs to 39 x 17 x 10 in for freight or checked luggage.
Integrated power
3U rackmount base with a pre-installed AC power-strip PDU; V-mount battery optional.
Clean cable routing
Integrated cable channels keep runs protected and tidy.
Mount anywhere
Cameras inside or outside the frame; 1/4"-20 and 3/8"-16 mounts.
Pack-down

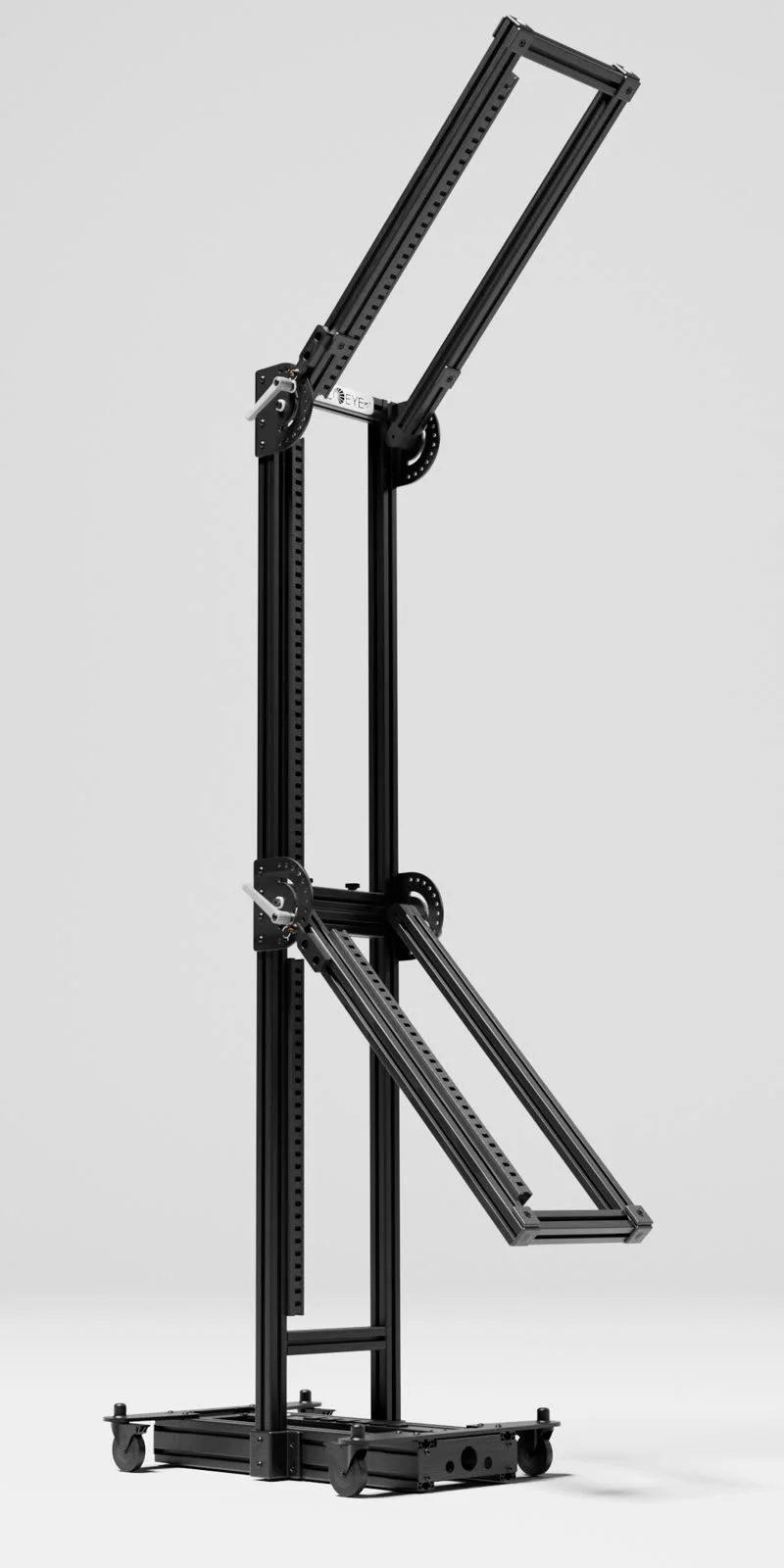

Capture-ready to packed flat, in five steps
Specifications
The numbers
0-180°
Arm range, indexed every 15° with free-angle positioning.
~55 lb
Four locking casters; ~2-minute setup with one tool.
8-10 outlets
Integrated AC PDU, 120 VAC / 16 A, surge protected.
3 years
Warranty on Arc Eye hardware and manufactured components.
Accessories
A full ecosystem
Travel case, camera ball mounts and mount hardware packs are available in the shop, so a single stand or a full multi-stand rig is easy to spec. Need a crossbar or stabilizer setup for a circular rig? Get in touch and we'll spec it with you.
Building a capture system?
Buy a stand outright, or tell us the subject and volume and we'll spec a complete multi-stand rig around it.
